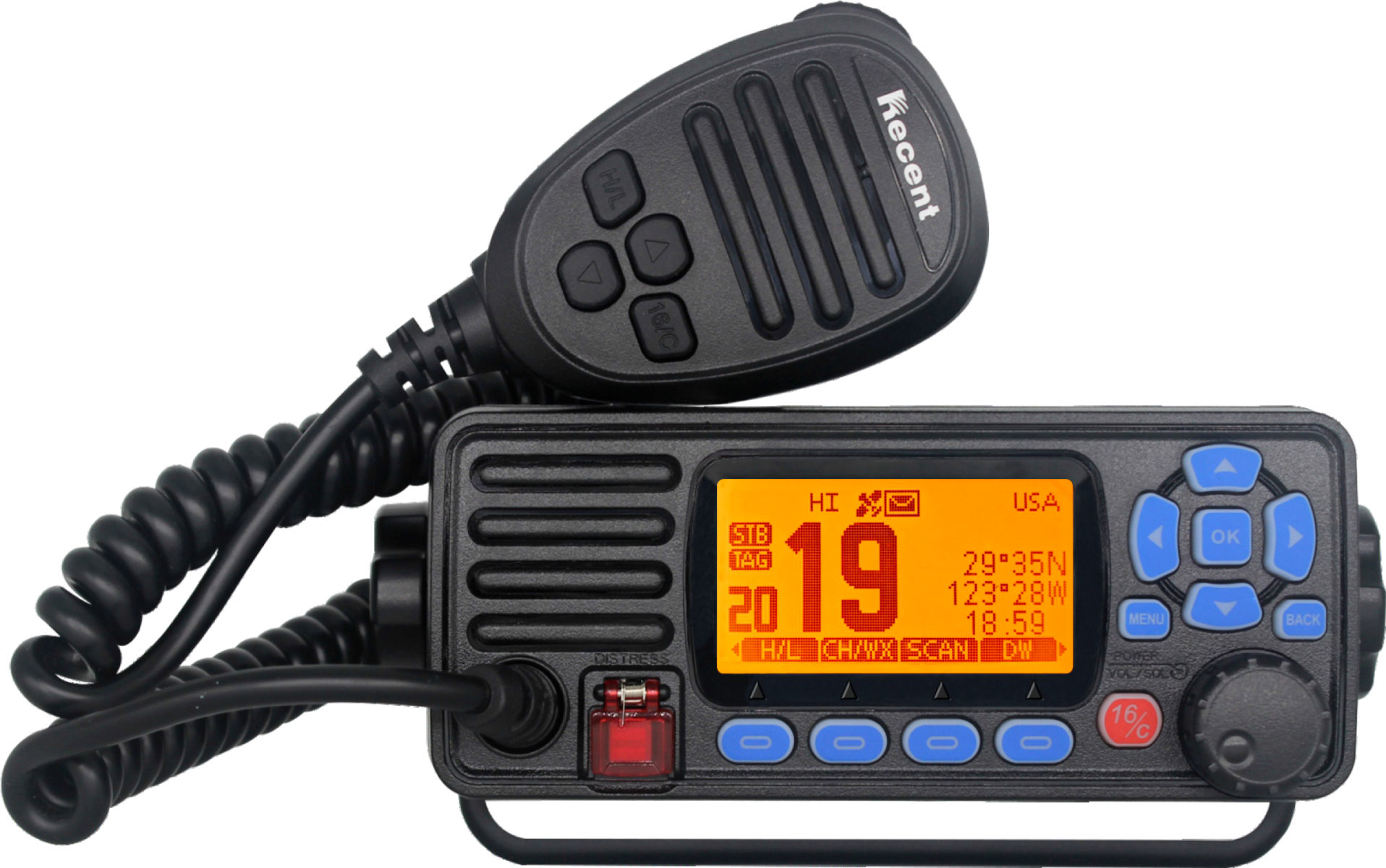

RS-509MG Marine Mobile radio

$369.00

Main Functions

Built-in GNSS Module, Support GPS, GLONAS, SBAS Satellite-based Augmentation System

(WAAS/EGNOS/MSAS/GAGAN)

Small Size for Easy Installation

NMEA Formats (In): RMC, GGA, GNS, GLL, VTG

NMEA Formats (Out): DSC, DSE, RMC, GSA, GSV

Dual Receiver, Independent DSC Dedicated Receiver

Manually Input GPS Latitude and Longitude and Time

IPX7 Waterproof Construction (1m Depth of Water for 30 Minutes)

Speaker Vibration Draining Function

Weather Channel Alarm

Dual/Tri-watch Functions

Scan: Normal Scan and Priority Scan

DSC Call Reception and Transmission Records Can be Queried

Standard NMEA Interface (RS-422 Protocol)

Full Dot Matrix Display

Channel Number Display Digits Selectable: 3 Digits(01B)/ 4 Digits(2001)

Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation

Support Latest Marine Channel Standards and DSC Protocol Standards.

DSC Distress Cals in 11 Categories,All DSC Calls in 3 Security Categories

Category:

Features


  • Built-in GNSS Module, Support GPS, GLONAS, SBAS Satellite-based Augmentation System (WAAS/EGNOS/MSAS/GAGAN) NMEA Formats (In): RMC, GGA, GNS, GLL, VTG
  • NMEA Formats (Out): DSC, DSE, RMC, GSA, GSV
  • Dual Receiver, Independent DSC Dedicated Receiver
  • Manually Input GPS Latitude and Longitude and Time
  • IPX7 Waterproof Construction (1m Depth of Water for 30 Minutes)
  • Speaker Vibration Draining Function
  • Weather Channel Alarm
  • Dual/Tri-watch Functions
  • Scan: Normal Scan and Priority Scan
  • DSC Call Reception and Transmission Records Can be Queried
  • Standard NMEA Interface (RS-422 Protocol)
  • Full Dot Matrix Display
  • Channel Number Display Digits Selectable: 3 Digits(01B)/ 4 Digits(2001)
  • Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation
  • Support Latest Marine Channel Standards and DSC Protocol Standards.
  • DSC Distress Cals in 11 Categories,All DSC Calls in 3 Security Categories
  •  Small Size for Easy Installation

Standard Package

  • Marine mobile radio
  • Hand Microphone
  • Mounting Bracket
  • DC Power Cable
  • GPS Antenna
  • User Manual

Specifications

Frequency Range TX: 156.000 - 162.000Mhz RX: 156.000 - 163.425Mhz
RF Power 25W / 1W
Modulation Mode 16KOG3E (FM) 16KOG2B (DSC)
Frequency Stability +- 5PPM
Operating Voltage DC 13.8V (+-15%)
Channel Spacing 25kHz
Operating Temperature Range -20 +60
Antenna Impedance 50ῼ
Output Impedance (audio) 4ῼ
Dimensions (W x H x D) 155 x 68 x 86mm
Weight 721g
